FABRICATION and CONSTRUCTION DETAILS

Frames fabricated from

  • Cold Rolled Steel, commercial quality, conforming to ASTM A-366.
  • Gauges 18 - 16 - 14 - 12 - 10.
  • CR Steel is dip-cleaned, phosphatized and finished with one coat of rust inhibitive primer.
  • Prime Paint exceeded 190 hour salt spray test per ASTM B-117
  • Optional - Galvannealed A60 (.6 oz./sq.ft. hot-dipped galv. ASTM 525). G90 available.
  • Stainless Steel type 304 #4 polish standard. Type 316 available.
  • Hinge Reinforcement No. 7 U.S. Gauge (3/16”).
  • No. 14 U.S. Gauge combination strike and mortar box standard.  No. 12 U.S. Gage optional.
  • No. 12 U.S. Gauge closer reinforcements and miscellaneous hardware reinforcements.

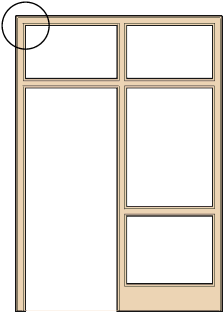

FW Frames (welded)

  • With hardware preps and reinforcements as scheduled
  • Complete with glazing bead, floor and wall anchors
  • Prime painted

Die Mitered, Notched for Assembly with Welding by Distributor

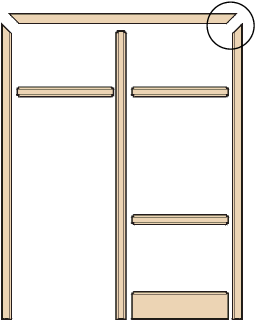

FKD Frames

  • With hardware preps as specified
  • Glazing bead and wall anchors furnished (loose) only when requested
  • Prime painted

FKDJ Frames

Die Mitered, Notched w/Corner Reinf. for Job Site Assembly

  • With hardware preps and reinforcements as required
  • Complete w/floor and wall anchors
  • Prime painted

FKD DW Frames

Die Mitered, Notched w/Corner Reinf. for Quick Field Erection Over-the-Wall

  • With drywall compression anchors
  • Screw holes @ bottom of jambs
  • Prime painted

FRAME STYLES

Square End (SE) Jambs and Sections

  • Die Mitered (KD)
  • Double or Single Rab.
  • Case Opening

45 deg. or 90 deg. Hospital (Sanitary) Stops

Die Notched Mullions

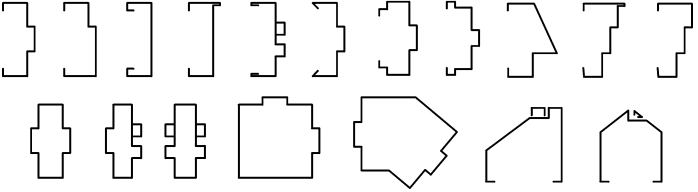

FRAME PROFILES

Full Mitered (M)

Die Mitered (KD) Double Egress Jambs and Heads
